Bacalhau v1.7.0 - Day 5: Distributed Data Warehouse with Bacalhau and DuckDB

(3:11) Build a distributed data warehouse with Bacalhau and DuckDB to run SQL queries on regional data without moving it.

This is part of the 5-days of Bacalhau 1.7 series! Make sure to go back to the start to catch all of them!

• Day 1: Announcing Bacalhau 1.7.0: Empowering Enterprises with Enhanced Scalability, Job Management, and Support

• Day 2: Scaling Your Compute Jobs with Bacalhau Partitioned Jobs

• Day 3: Streamlining Security: Simplifying Bacalhau's Authentication Model

• Day 4: Using AWS S3 Partitioning With Bacalhau

Distributed Data Warehouse with Bacalhau and DuckDB

With many applications that rely on data warehouses, you need to keep data sources in different locations. This could be due to privacy or regulatory reasons or because you want to keep processing close to the source. However, there are still times when you want to perform analysis on and across these data sources from one location but not move the data.

This post uses Bacalhau to orchestrate the distributed processing and DuckDB to provide the SQL storage and querying capacity for some mock sales data based in the EU and the US.

Prerequisites

To reproduce this tutorial, you need the following prerequisites:

• Bacalhau CLI

• Docker and Docker Compose

• The example multi-region setup

  • git clone https://github.com/bacalhau-project/examples.git

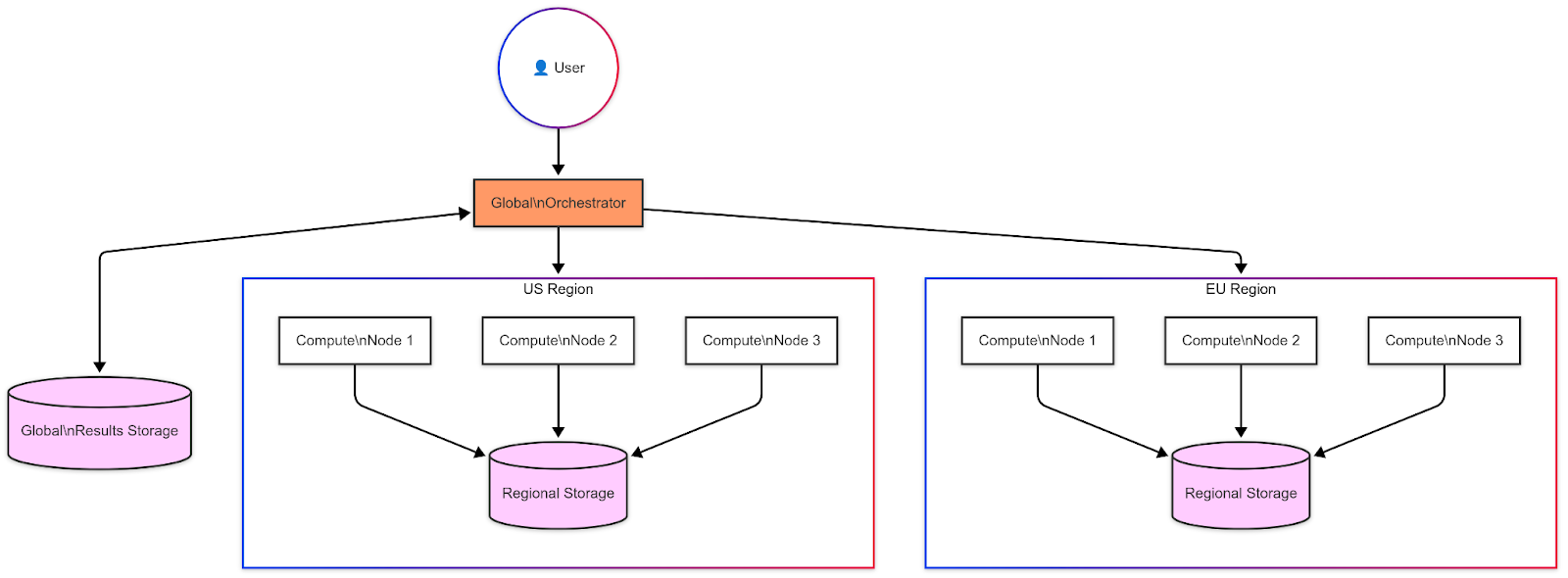

Architecture

The example Docker Compose file and Bacalhau job definitions in the example repository setup simulate the following architecture:

• Bacalhau Orchestrator: Central control plane for job distribution

• Compute Nodes: Distributed across regions, running close to data

• Regional Storage: Regional data stores, using MinIO in this setup

• DuckDB: SQL query engine running on each compute node. Bacalhau has a custom image that adds several user-defined functions to help with partitioning large data sets across nodes based on the following methods:

  • partition_by_hash: Even distribution of files across partitions

  • partition_by_regex: Pattern-based partitioning

  • partition_by_date: Time-based partitioning

• You can find more details on how these functions work in the custom image documentation.

You can see each component’s setup in the Docker Compose file. Create the architecture by running the following command:

docker compose up -d

The Docker Compose file uses several Bacalhau configuration files, which you can see in the configuration folder that label the compute nodes as US and EU nodes, respectively.

They also configure the orchestrator nodes to write data to the regional MinIO buckets.

Generate sample data

With the simulated infrastructure in place, you can now create sample data using the data generator job to write 3000 records to each region in JSON format to the relevant MinIO bucket.

# Move to the jobs directory
cd ../jobs

Generate the US data:

bacalhau job run -V Region=us -V Events=3000 \
-V StartDate=2024-01-01 -V EndDate=2024-12-31 \
-V RotateInterval=month data-generator.yaml

Generate the EU data:

bacalhau job run -V Region=eu -V Events=3000 \
-V StartDate=2024-01-01 -V EndDate=2024-12-31 \
-V RotateInterval=month data-generator.yaml

Accessing data for analysis

Bacalhau supports two ways to access the regional data:

Bacalhau input sources

InputSources:
- Type: s3
Source:
Bucket: local-bucket
Key: "data/*"

This method provides more control and preprocessing options and supports other source types in addition to S3.

Direct DuckDB access

SET VARIABLE files = (
SELECT LIST(file)
FROM partition_by_hash('s3://local-bucket/**/*.jsonl')
);
SELECT * FROM read_json_auto(getvariable('files'));

This method is a simpler and more familiar option for SQL-only jobs. The job definitions also use SQL queries to process data from an input source.

Run analysis

With data in place, you can send analysis tasks as Bacalhau jobs. In each case, after running the job, use bacalhau job describe <job_id> to see the job results, passing the job ID from the output of the bacalhau job run command. All the examples show using US data. You can also change Region to eu to see the results from the EU region.

Monthly trend analysis

bacalhau job run -V Region=us monthly-trends.yaml

Job definition.

Sample output:

month | total_txns | revenue | unique_customers | avg_txn_value
------------|------------|----------|------------------|---------------
2024-03-01 | 3,421 | 178,932 | 1,245 | 52.30
2024-02-01 | 3,156 | 165,789 | 1,189 | 52.53
2024-01-01 | 2,987 | 152,456 | 1,023 | 51.04

Operational monitoring

1. Hourly Operations

• Tracks operational health metrics

• Monitors transaction success rates

• Shows hourly patterns

bacalhau job run -V Region=us hourly-operations.yaml

2. Anomaly Detection

• Identifies unusual patterns

• Uses statistical analysis

• Flags significant deviations

bacalhau job run -V Region=us anomaly-detection.yaml

Business analytics

1. Product Performance

• Analyzes category performance

• Tracks market share

• Shows sales patterns

bacalhau job run -V Region=us product-performance.yaml

2. Monthly Trends

• Long-term trend analysis

• Monthly aggregations

• Key business metrics

bacalhau job run -V Region=us monthly-trends.yaml

Customer analysis

1. Customer Segmentation (Two-Phase)

• Phase 1: Compute local metrics

• Phase 2: Combine and segment

# Run Phase 1
bacalhau job run -V Region=us customer-segments-phase1.yaml

# Note the job ID, then run Phase 2
bacalhau job run -V Region=us -V JobID=<phase1-job-id> customer-segments-phase2.yaml

Summary

This post combined the distributed computing power of Bacalhau with the flexible SQL capabilities of DuckDB to create a distributed data warehouse spread across regions. The example Bacalhau jobs provide a range of analysis tasks, from operational monitoring to customer segmentation, all while keeping the data in its original location and using SQL to query data stored in S3-compatible buckets.
